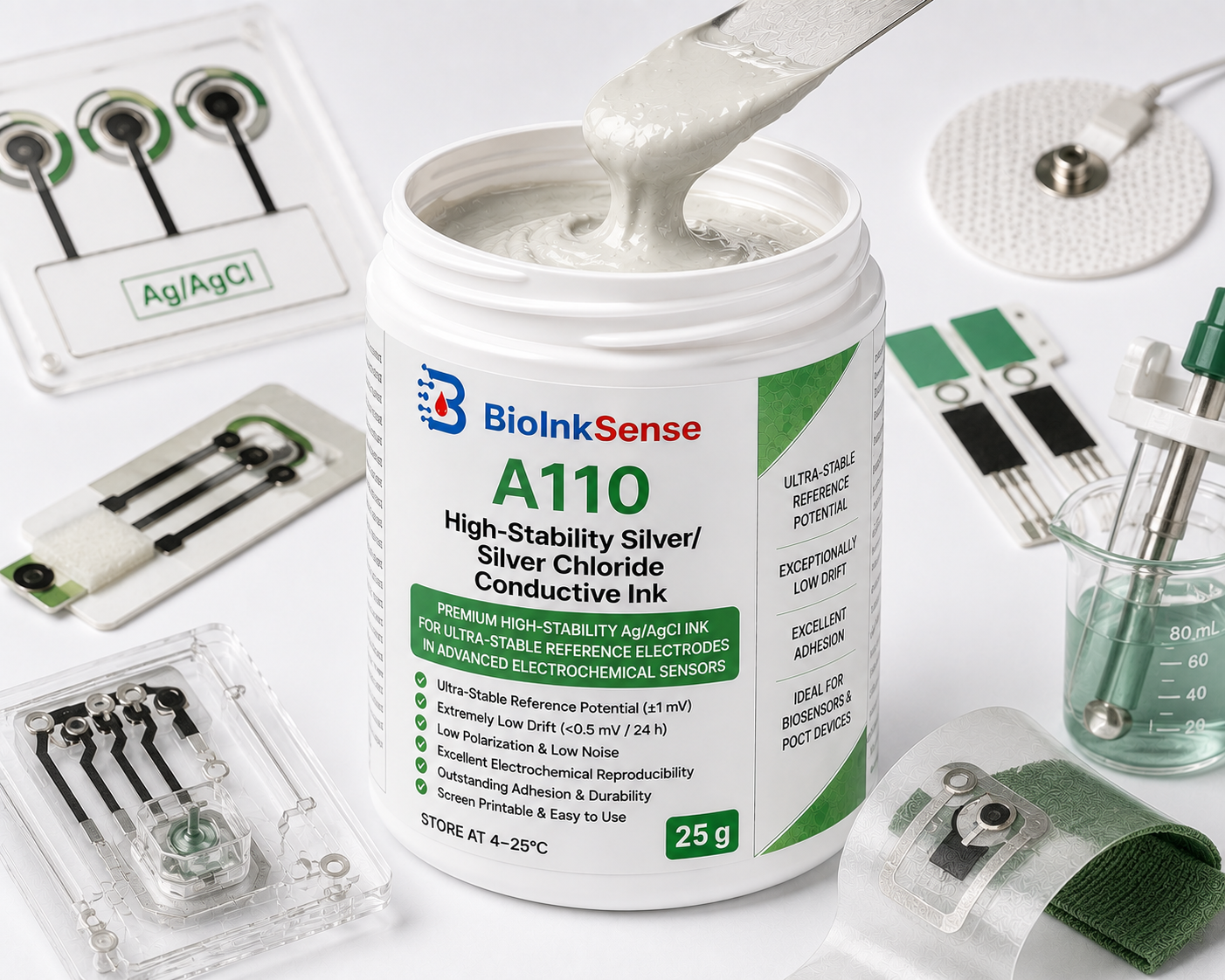

BioInkSense™ A110 High-Stability Silver/Silver Chloride Conductive Ink
Price range: $1,799.00 through $3,599.00
Premium high-stability screen-printable silver/silver chloride conductive ink engineered for fabrication of ultra-stable printed reference electrodes used in electrochemical biosensors, clinical diagnostics, wearable sensors, environmental monitoring, and laboratory analytical devices.
Description
Description
BioInkSense™ A110 High-Stability Silver/Silver Chloride Conductive Ink
BioInkSense™ A110 is a premium high-stability silver/silver chloride (Ag/AgCl) conductive ink developed for electrochemical applications requiring exceptional reference potential stability, minimal drift, and outstanding long-term analytical performance. The optimized formulation combines high-purity silver particles with precisely engineered silver chloride content to produce highly reproducible printed reference electrodes suitable for demanding analytical measurements.
The proprietary formulation minimizes potential drift while maintaining excellent printability, substrate adhesion, mechanical durability, and electrochemical reproducibility. A110 is ideally suited for disposable biosensors, continuous monitoring devices, wearable sensors, clinical diagnostics, environmental monitoring systems, food safety sensors, and laboratory electrochemical instrumentation.
Designed for both research laboratories and industrial manufacturing, A110 delivers reliable performance from prototype development to large-scale production.
Technical Specifications
| Property | Typical Value |
|---|---|
| Ink chemistry | High-stability Silver/Silver Chloride composite |
| Printing method | Screen printing |
| Mesh compatibility | 250–420 mesh |
| Recommended emulsion thickness | 10–20 μm |
| Wet film thickness | 12–25 μm |
| Cured film thickness | 6–12 μm |
| Recommended curing temperature | 90–120°C |
| Recommended curing time | 10–20 min |
| Solid content | 72–82 wt% |
| Viscosity (25°C) | 10,000–22,000 cP |
| AgCl content | Optimized proprietary formulation |
| Particle size (D90) | <8 μm |
| Density | 2.8–3.4 g/cm³ |
| Shelf life | 12 months |
| Storage temperature | 4–25°C |
Electrochemical Performance
| Parameter | Typical Value |
|---|---|
| Reference potential stability | ±1 mV |
| Potential drift (24 h) | <0.5 mV |
| Polarization | Extremely Low |
| Background current | <0.15 μA/cm² |
| Electrode-to-electrode reproducibility | CV <2% |
| Signal stability | >99.5% after 1,000 measurements |
| Compatible techniques | CV, DPV, SWV, CA, EIS, OCP |
Electrical Performance
| Parameter | Typical Value |
|---|---|
| Sheet resistance | <0.07 Ω/sq |
| Volume resistivity | <9 × 10⁻⁶ Ω·cm |
| Batch-to-batch variation | <2% |
| Adhesion | ASTM D3359 Class 5B |
Mechanical Performance
| Parameter | Typical Value |
|---|---|
| Minimum bending radius | <3 mm |
| Flexibility | Excellent |
| Tape adhesion | ASTM D3359 Class 5B |
| Abrasion resistance | High |
| Chemical compatibility | PBS, serum, saliva, sweat, urine, chloride-containing buffers |
Compatible Substrates
- PET
- Polyester
- Polycarbonate
- Polyimide
- Paper
- Flexible polymer films
- Surface-treated plastics
Manufacturing Compatibility
- Manual screen printing
- Semi-automatic screen printing
- Fully automatic screen printing
- Roll-to-roll manufacturing
- Sheet-fed production
Typical Applications
- High-accuracy reference electrodes
- Continuous glucose monitoring
- Electrochemical biosensors
- Wearable diagnostics
- Point-of-care testing
- Microfluidic sensors
- Laboratory electrochemical systems
- Environmental monitoring
- Food safety testing
- Clinical diagnostic cartridges
Quality Assurance
Each production batch undergoes comprehensive quality control including Ag/AgCl composition verification, rheological characterization, reference potential stability testing, electrical conductivity testing, adhesion testing, printability assessment, electrochemical validation, visual inspection, and batch-to-batch reproducibility analysis.
Available Documents
- Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Printing Guide
- Storage and Handling Guide
- Certificate of Analysis (available upon request)
Ordering
Select the desired package size and quantity from the purchase options above. Product pricing and availability are updated automatically based on the selected package size.
Additional information
| gram | 250 g, 500 g |
|---|
