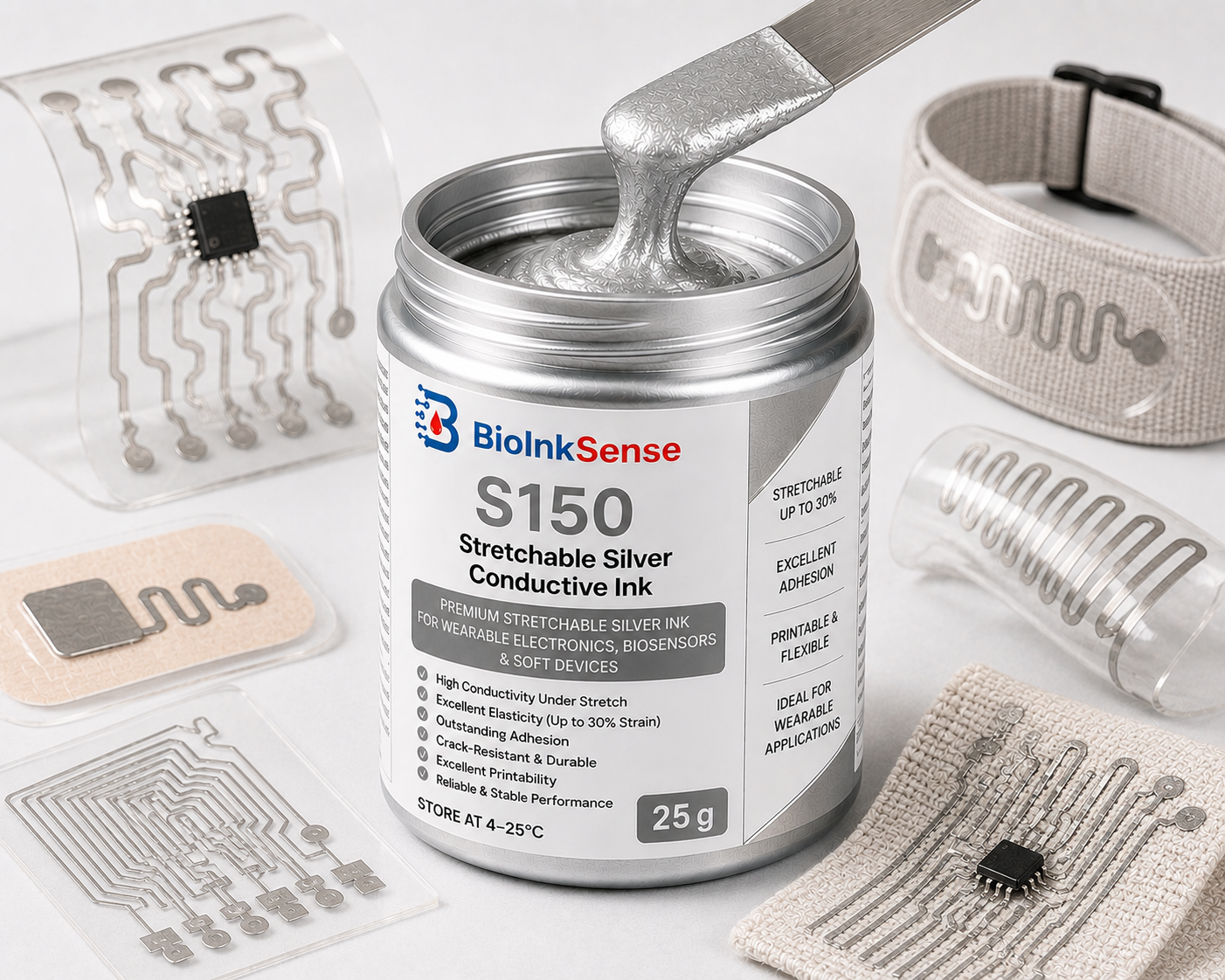

BioInkSense™ S150 Stretchable Silver Conductive Ink

BioInkSense™ S150 Stretchable Silver Conductive Ink

Price range: $119.00 through $2,799.00

Premium stretchable screen-printable silver conductive ink engineered for wearable electronics, soft robotics, skin-mounted biosensors, smart textiles, and stretchable electronic systems requiring stable conductivity under repeated mechanical deformation.

SKU: N/A Category:

Description

Description

BioInkSense™ S150 Stretchable Silver Conductive Ink

BioInkSense™ S150 is a next-generation stretchable silver conductive ink specifically engineered for fabrication of highly deformable electronic devices. The proprietary formulation combines high-purity silver particles with an advanced elastomeric polymer matrix that maintains excellent electrical conductivity during repeated stretching, bending, twisting, and compression.

Unlike conventional conductive inks, S150 is designed for applications requiring continuous electrical performance while subjected to large mechanical strains. The optimized composite minimizes crack formation, preserves conductive pathways during deformation, and delivers excellent adhesion to flexible and elastic substrates. S150 is ideal for wearable health monitoring devices, epidermal electronics, stretchable biosensors, electronic skin, smart textiles, flexible medical devices, and soft robotic systems.

The formulation supports laboratory prototyping as well as industrial roll-to-roll manufacturing.

Technical Specifications

Property Typical Value
Ink chemistry Stretchable silver-elastomer composite
Printing method Screen printing
Mesh compatibility 250–420 mesh
Recommended emulsion thickness 10–20 μm
Wet film thickness 10–25 μm
Cured film thickness 5–12 μm
Recommended curing temperature 80–110°C
Recommended curing time 10–15 min
Solid content 70–80 wt%
Viscosity (25°C) 9,000–22,000 cP
Particle size (D90) <6 μm
Density 2.6–3.3 g/cm³
Shelf life 12 months
Storage temperature 4–25°C

Electrical Performance

Parameter Typical Value
Sheet resistance <0.025 Ω/sq @ 10 μm cured film*
Volume resistivity <8 × 10⁻⁶ Ω·cm*
Conductivity >2.2 × 10⁷ S/m
Batch-to-batch conductivity variation <2%
Print-to-print reproducibility CV <2%
Contact resistance variation <2%
Adhesion ASTM D3359 Class 5B
Electrical stability >97% conductivity retained after 10,000 stretch cycles

*Measured under recommended printing and curing conditions.

Mechanical Performance

Parameter Typical Value
Maximum strain 30%
Minimum bending radius <1 mm
Flexibility Outstanding
Stretchability Excellent
Tape adhesion ASTM D3359 Class 5B
Abrasion resistance Excellent
Chemical compatibility PBS, serum, saliva, sweat, urine, aqueous buffers

Compatible Substrates

  • TPU
  • Silicone
  • Polyurethane
  • PET
  • Stretchable polymer films
  • Textile fabrics
  • Medical adhesive films
  • Elastomeric substrates

Manufacturing Compatibility

  • Manual screen printing
  • Semi-automatic screen printing
  • Fully automatic screen printing
  • Roll-to-roll manufacturing
  • Sheet-fed production

Typical Applications

  • Stretchable biosensors
  • Skin-mounted electronics
  • Wearable healthcare devices
  • Electronic skin (e-skin)
  • Smart textiles
  • Flexible medical patches
  • Human-motion sensors
  • Soft robotics
  • Sports performance monitoring
  • Flexible biomedical electronics

Quality Assurance

Each production batch undergoes comprehensive quality control including rheological characterization, silver particle distribution analysis, cyclic stretching evaluation, electrical conductivity testing, adhesion testing, printability assessment, mechanical fatigue testing, visual inspection, and batch-to-batch reproducibility analysis.

Available Documents

  • Technical Data Sheet (TDS)
  • Safety Data Sheet (SDS)
  • Printing Guide
  • Storage and Handling Guide
  • Certificate of Analysis (available upon request)

Ordering

Select the desired package size and quantity from the purchase options above. Product pricing and availability are updated automatically based on the selected package size.

Additional information

gram

10 g, 25 g, 50 g, 100 g, 250 g, 500 g
