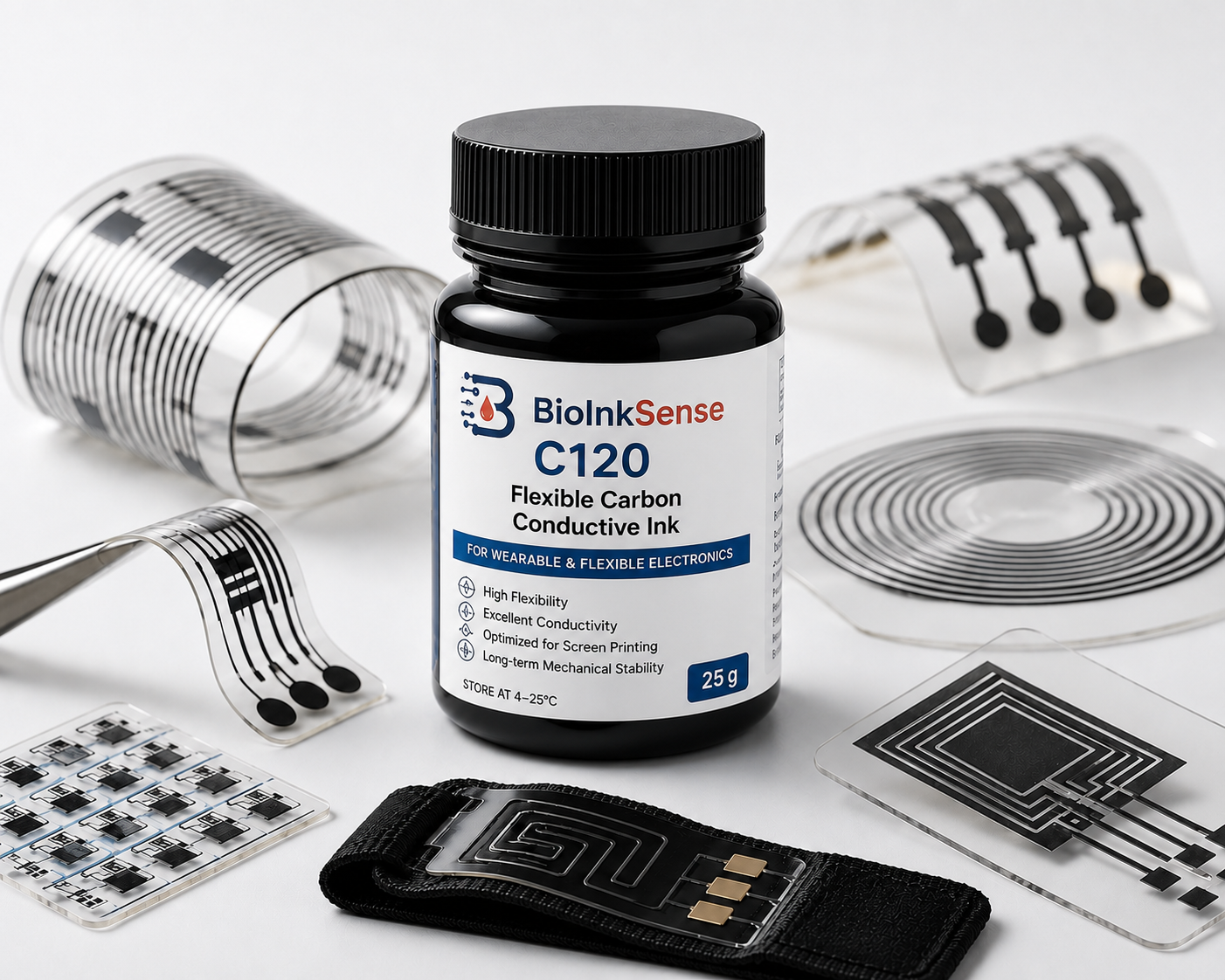

BioInkSense™ C120 Flexible Carbon Conductive Ink

BioInkSense™ C120 Flexible Carbon Conductive Ink

Price range: $139.00 through $3,799.00

High-flexibility screen-printable carbon conductive ink optimized for wearable biosensors, flexible electronics, printed electrodes, and disposable diagnostic devices requiring excellent electrical stability under repeated bending and mechanical deformation.

SKU: N/A Category:

Description

Description

BioInkSense™ C120 Flexible Carbon Conductive Ink

BioInkSense™ C120 is a high-performance flexible carbon conductive ink engineered for fabrication of wearable biosensors, flexible printed electronics, stretchable sensors, and disposable diagnostic devices. The formulation combines excellent electrical conductivity with exceptional mechanical flexibility, enabling reliable electrical performance under repeated bending, twisting, and mechanical deformation.

The optimized polymer-carbon composite provides excellent adhesion on flexible substrates while minimizing conductivity loss during cyclic mechanical loading. C120 is particularly suited for next-generation wearable healthcare devices, epidermal sensors, flexible microfluidic systems, and printed electronic circuits requiring long-term mechanical durability.

The formulation is optimized for fabrication of working electrodes used in amperometric, voltammetric, potentiometric, and electrochemical impedance sensors.

Technical Specifications

Property Typical Value
Ink chemistry Flexible graphite/polymer composite
Printing method Screen printing
Mesh compatibility 200–420 mesh
Recommended emulsion thickness 10–20 μm
Wet film thickness 12–25 μm
Cured film thickness 5–12 μm
Recommended curing temperature 80–110°C
Recommended curing time 10–20 min
Solid content 65–75 wt%
Viscosity (25°C) 8,000–18,000 cP
Particle size (D90) <10 μm
Density 1.3–1.6 g/cm³
Shelf life 12 months
Storage temperature 4–25°C

Electrical Performance

Parameter Typical Value
Sheet resistance <18 Ω/sq @ 10 μm cured film*
Volume resistivity <0.02 Ω·cm*
Batch-to-batch conductivity variation <5%
Print-to-print reproducibility CV <3%
Contact resistance variation <5%
Adhesion ASTM D3359 Class 5B
Electrical stability >98% conductivity retained after 5,000 bending cycles

*Measured under recommended printing and curing conditions.

Electrochemical Performance

Parameter Typical Value
Electrochemical window −0.6 to +1.0 V (vs Ag/AgCl)
Peak-to-peak separation (5 mM Fe(CN)₆³⁻/⁴⁻, 100 mV/s) <90 mV
Background current <0.5 μA/cm²
Electrode-to-electrode reproducibility CV <5%
Signal stability >98% after 100 continuous measurements
Compatible techniques CV, DPV, SWV, CA, EIS, OCP

Mechanical Performance

Parameter Typical Value
Minimum bending radius <2 mm
Flexibility Outstanding
Tape adhesion ASTM D3359 Class 5B
Abrasion resistance High
Chemical compatibility PBS, serum, saliva, sweat, urine, aqueous buffers

Compatible Substrates

  • Polyethylene terephthalate (PET)
  • Thermoplastic polyurethane (TPU)
  • Polyurethane films
  • Polyimide
  • Polyester
  • Textile fabrics
  • Stretchable polymer films

Manufacturing Compatibility

  • Manual screen printing
  • Semi-automatic screen printing
  • Fully automatic screen printing
  • Roll-to-roll manufacturing
  • Sheet-fed production

Typical Applications

  • Wearable biosensors
  • Flexible electrochemical sensors
  • Electronic skin
  • Sweat monitoring devices
  • Stretchable printed electronics
  • Flexible printed circuits
  • Smart patches
  • Point-of-care diagnostics
  • Human motion sensors
  • Flexible healthcare devices

Quality Assurance

Each production batch undergoes comprehensive quality control including rheological characterization, electrical conductivity testing, electrochemical performance verification, adhesion testing, cyclic bending evaluation, printability assessment, visual inspection, and batch-to-batch reproducibility analysis.

Available Documents

  • Technical Data Sheet (TDS)
  • Safety Data Sheet (SDS)
  • Printing Guide
  • Storage and Handling Guide
  • Certificate of Analysis (available upon request)

Ordering

Select the desired package size and quantity from the purchase options above. Product pricing and availability are updated automatically based on the selected package size.

Additional information

gram

10 g, 25 g, 50 g, 100 g, 250 g, 500 g
