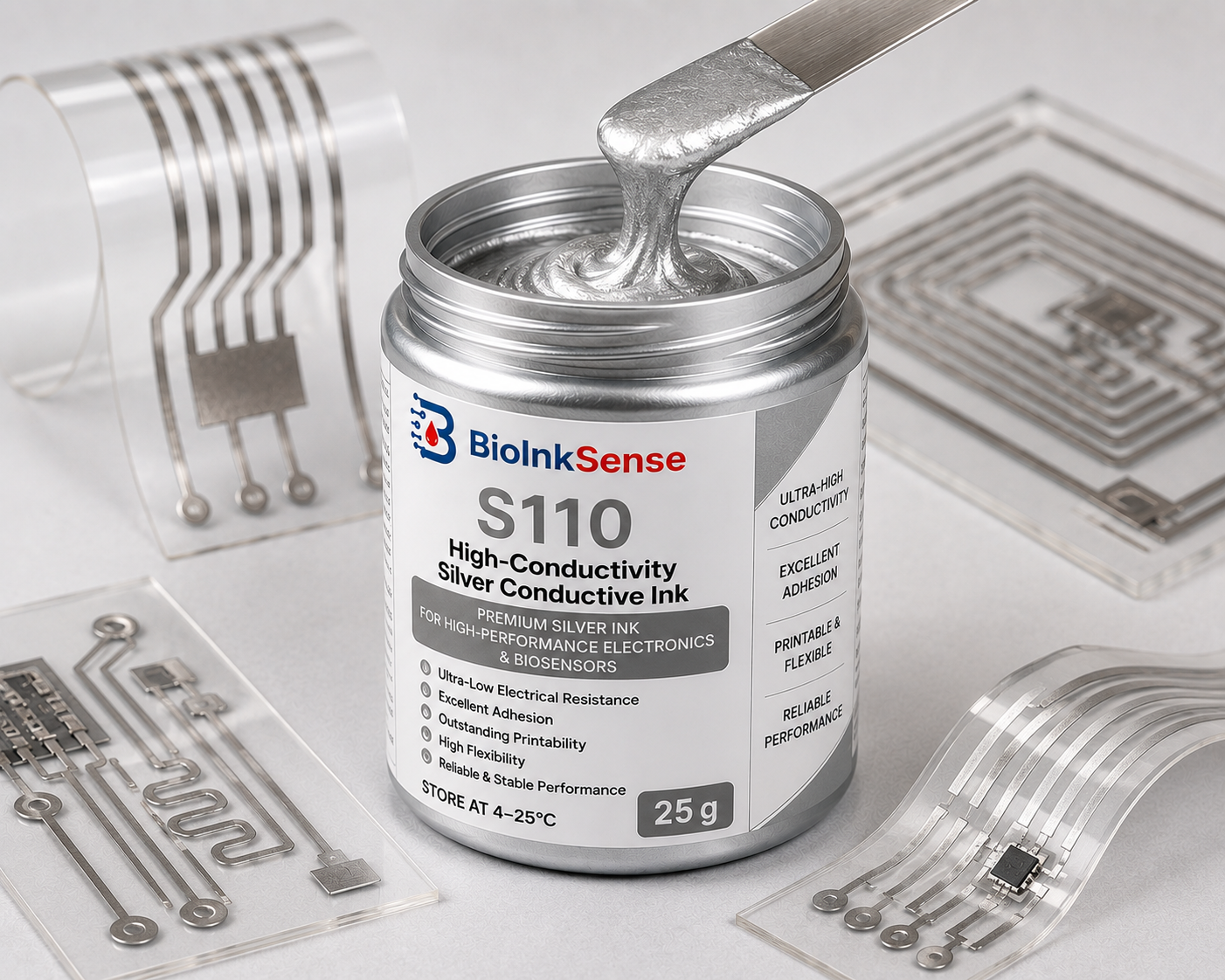

BioInkSense™ S110 High-Conductivity Silver Conductive Ink

BioInkSense™ S110 High-Conductivity Silver Conductive Ink

Price range: $129.00 through $3,399.00

Premium high-conductivity screen-printable silver conductive ink engineered for ultra-low electrical resistance, superior print definition, and reliable fabrication of high-performance printed electronics, biosensors, RFID antennas, flexible circuits, and wearable electronic devices.

SKU: N/A Category:

Description

Description

BioInkSense™ S110 High-Conductivity Silver Conductive Ink

BioInkSense™ S110 is a premium screen-printable silver conductive ink formulated with highly conductive silver particles and an advanced polymer binder system to achieve extremely low electrical resistance and excellent printing performance. The optimized formulation provides outstanding conductivity, exceptional substrate adhesion, superior print resolution, and long-term environmental stability for research, prototyping, and industrial manufacturing.

The engineered silver particle distribution creates highly interconnected conductive pathways that minimize electrical resistance while maintaining excellent rheology for precision screen printing. After curing, S110 produces highly conductive printed features with outstanding flexibility and mechanical durability, making it ideal for fabrication of printed circuits, flexible electronics, wearable sensors, RFID antennas, biosensors, membrane switches, and high-performance electronic interconnects.

The formulation is compatible with both laboratory-scale prototyping and fully automated industrial manufacturing.

Technical Specifications

Property Typical Value
Ink chemistry High-purity silver particle composite
Printing method Screen printing
Mesh compatibility 250–420 mesh
Recommended emulsion thickness 10–20 μm
Wet film thickness 10–25 μm
Cured film thickness 5–12 μm
Recommended curing temperature 90–120°C
Recommended curing time 10–15 min
Solid content 78–86 wt%
Viscosity (25°C) 10,000–24,000 cP
Particle size (D90) <6 μm
Density 2.9–3.6 g/cm³
Shelf life 12 months
Storage temperature 4–25°C

Electrical Performance

Parameter Typical Value
Sheet resistance <0.018 Ω/sq @ 10 μm cured film*
Volume resistivity <6 × 10⁻⁶ Ω·cm*
Conductivity >2.5 × 10⁷ S/m
Batch-to-batch conductivity variation <2%
Print-to-print reproducibility CV <2%
Contact resistance variation <2%
Adhesion ASTM D3359 Class 5B
Electrical stability >99% conductivity retained after 8,000 bending cycles

*Measured under recommended printing and curing conditions.

Mechanical Performance

Parameter Typical Value
Minimum bending radius <3 mm
Flexibility Excellent
Tape adhesion ASTM D3359 Class 5B
Abrasion resistance Very High
Chemical compatibility PBS, serum, sweat, aqueous buffers, IPA

Compatible Substrates

  • Polyethylene terephthalate (PET)
  • Polyester
  • Polycarbonate
  • Polyimide
  • Glass
  • Ceramic
  • Flexible polymer films
  • Surface-treated plastics

Manufacturing Compatibility

  • Manual screen printing
  • Semi-automatic screen printing
  • Fully automatic screen printing
  • Roll-to-roll manufacturing
  • Sheet-fed production

Typical Applications

  • High-performance printed electronics
  • Flexible printed circuits
  • RFID antennas
  • NFC antennas
  • Wearable electronics
  • Printed biosensors
  • Conductive interconnects
  • Membrane switches
  • Printed heaters
  • Medical diagnostic devices

Quality Assurance

Each production batch undergoes comprehensive quality control including silver particle distribution analysis, rheological characterization, electrical conductivity testing, adhesion testing, printability verification, visual inspection, and batch-to-batch reproducibility analysis.

Available Documents

  • Technical Data Sheet (TDS)
  • Safety Data Sheet (SDS)
  • Printing Guide
  • Storage and Handling Guide
  • Certificate of Analysis (available upon request)

Ordering

Select the desired package size and quantity from the purchase options above. Product pricing and availability are updated automatically based on the selected package size.

Additional information

gram

10 g, 25 g, 50 g, 100 g, 250 g, 500 g
