BioInkSense™ S120 Flexible Silver Conductive Ink

BioInkSense™ S120 Flexible Silver Conductive Ink

Price range: $139.00 through $4,899.00

Premium screen-printable flexible silver conductive ink engineered for wearable electronics, flexible biosensors, stretchable circuits, and next-generation printed electronic devices requiring exceptional conductivity under repeated bending and mechanical deformation.

SKU: N/A Category:

Description

Description

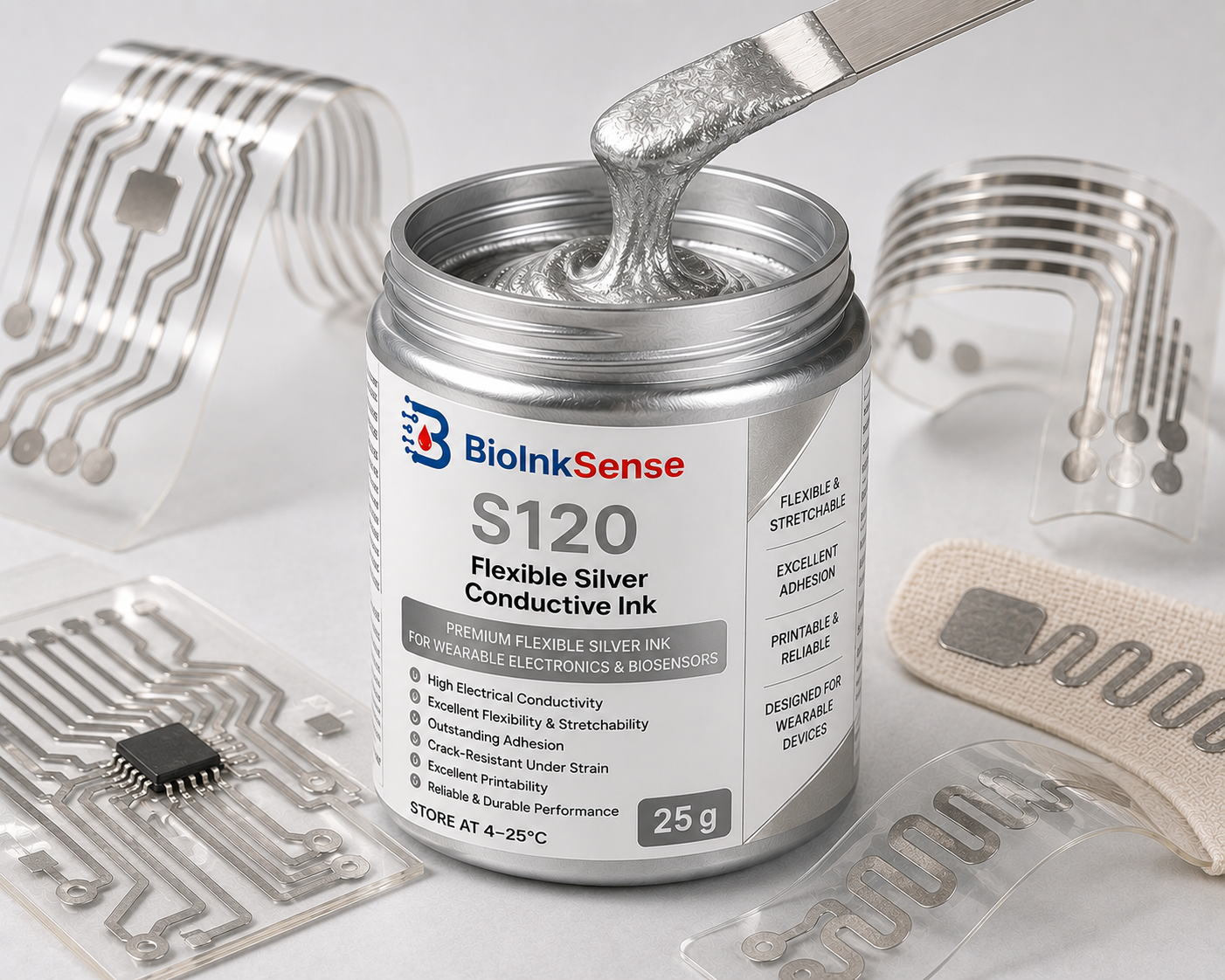

BioInkSense™ S120 Flexible Silver Conductive Ink

BioInkSense™ S120 is a premium flexible silver conductive ink engineered for fabrication of wearable electronics, flexible biosensors, stretchable printed circuits, medical devices, and soft electronic systems. The formulation combines highly conductive silver particles with an advanced flexible polymer matrix that maintains outstanding electrical conductivity under repeated bending, twisting, and flexing.

Unlike conventional silver inks, S120 is specifically designed for applications where mechanical durability is as important as electrical performance. The optimized formulation provides excellent elasticity, crack resistance, substrate adhesion, and long-term electrical stability while maintaining exceptional printability and fine-line resolution. S120 is ideally suited for wearable health monitoring devices, flexible biosensors, printed medical electrodes, smart textiles, flexible displays, and next-generation printed electronics.

The formulation is compatible with both laboratory prototyping and industrial roll-to-roll manufacturing.

Technical Specifications

Property Typical Value
Ink chemistry Flexible silver particle composite
Printing method Screen printing
Mesh compatibility 250–420 mesh
Recommended emulsion thickness 10–20 μm
Wet film thickness 10–25 μm
Cured film thickness 5–12 μm
Recommended curing temperature 80–110°C
Recommended curing time 10–15 min
Solid content 72–82 wt%
Viscosity (25°C) 9,000–22,000 cP
Particle size (D90) <6 μm
Density 2.7–3.4 g/cm³
Shelf life 12 months
Storage temperature 4–25°C

Electrical Performance

Parameter Typical Value
Sheet resistance <0.022 Ω/sq @ 10 μm cured film*
Volume resistivity <7 × 10⁻⁶ Ω·cm*
Conductivity >2.3 × 10⁷ S/m
Batch-to-batch conductivity variation <2%
Print-to-print reproducibility CV <2%
Contact resistance variation <2%
Adhesion ASTM D3359 Class 5B
Electrical stability >98% conductivity retained after 20,000 bending cycles

*Measured under recommended printing and curing conditions.

Mechanical Performance

Parameter Typical Value
Minimum bending radius <1.5 mm
Flexibility Outstanding
Stretchability Up to 20% strain
Tape adhesion ASTM D3359 Class 5B
Abrasion resistance Excellent
Chemical compatibility PBS, serum, sweat, saline, aqueous buffers

Compatible Substrates

  • PET
  • TPU
  • Polyurethane films
  • Polyimide
  • Polyester
  • Silicone-coated films
  • Textile fabrics
  • Flexible polymer films

Manufacturing Compatibility

  • Manual screen printing
  • Semi-automatic screen printing
  • Fully automatic screen printing
  • Roll-to-roll manufacturing
  • Sheet-fed production

Typical Applications

  • Wearable biosensors
  • Flexible medical electrodes
  • Smart textiles
  • Stretchable electronics
  • Flexible printed circuits
  • Skin-mounted sensors
  • Healthcare monitoring patches
  • Soft robotics
  • Human-machine interfaces
  • Flexible electronic devices

Quality Assurance

Each production batch undergoes comprehensive quality control including rheological characterization, silver particle distribution analysis, electrical conductivity testing, cyclic bending evaluation, mechanical fatigue testing, adhesion testing, printability verification, visual inspection, and batch-to-batch reproducibility analysis.

Available Documents

  • Technical Data Sheet (TDS)
  • Safety Data Sheet (SDS)
  • Printing Guide
  • Storage and Handling Guide
  • Certificate of Analysis (available upon request)

Ordering

Select the desired package size and quantity from the purchase options above. Product pricing and availability are updated automatically based on the selected package size.

Additional information

gram

10 g, 25 g, 50 g, 100 g, 250 g, 500 g
